One of Eaglerise’s newest LED drivers from their EIP range.
This is a NON dimmable LED driver.
This LED driver replaces the Eaglerise ELP6X1LS as from 1st October 2014.
12/05/20 – This unit has been discontinued by Eaglerise.
10/11/24 – The Huibolong HLV35008R1 is the only model currently on the market that is virtually identical to the EIP008C0350LS due to its low powerband.

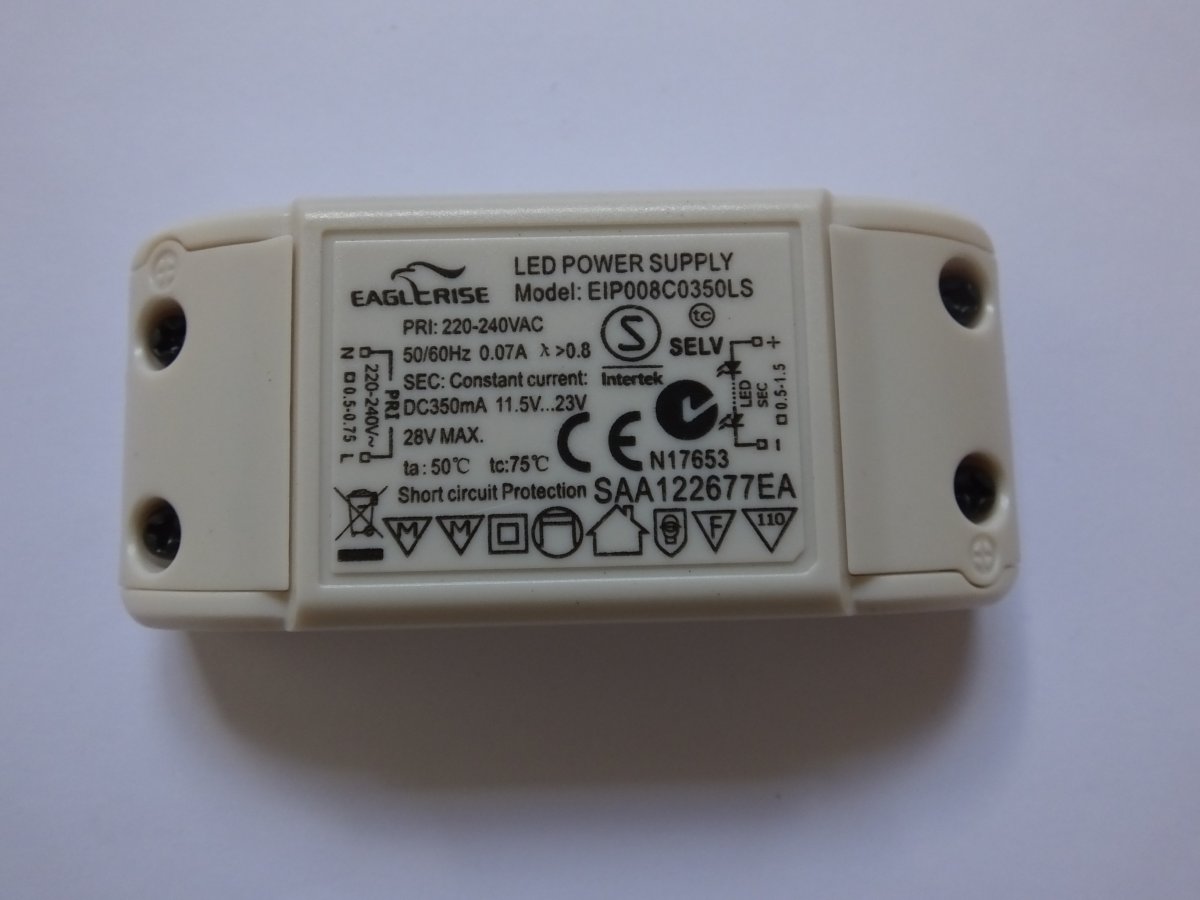

Model: EIP008C0350LS
Input: 220-240v AC
Secondary: 350mA
Output: 8w
Output voltage: 11-23V
Short Circuit / High Temperature Protection
Certification Mark:- SEMKO CE
Protection Class:- IP20
Standards (EMC) EN 61000-3-2, EN 61000-3-3, EN 61000-4-2, EN 61000-4-5, EN 55015, EN 61547.
Standards (LVD) EN 61347-1, EN 61347-2-13.
| Weight | 0.11 kg |
|---|---|
| Dimensions | 39 × 88 × 22.5 mm |
| Condition | New |
| Country Of Manufacture | China |
| Maximum Wattage | 8w |
| Minimum Wattage | 4w |
| MPN | EIP008C0350LS |
| Outputs | 1 |
| Primary | 220 – 240v |
| Secondary | Constant current DC350mA 11-23V |
