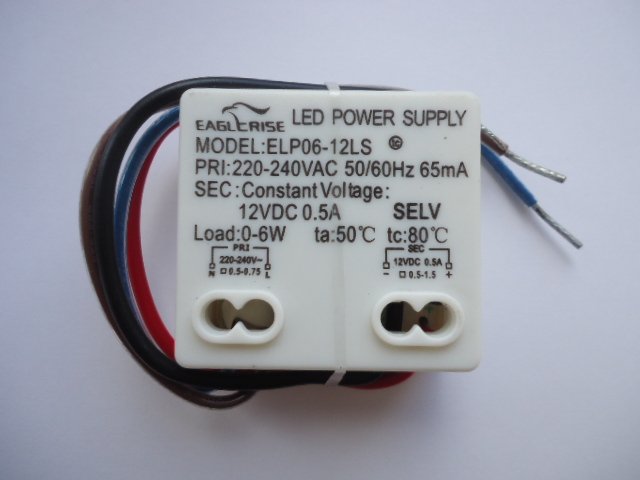

Name: EAGLERISE ELP06-12LS ELP006V0120LT LED DRIVER CONSTANT VOLTAGE (DISCONTINUED)
SKU: ELP06-12LS
Availability: OutOfStock

+44 (0) 871 288 266 0

Username *

Email address *

A password will be sent to your email address.

Your personal data will be used to support your experience throughout this website, to manage access to your account, and for other purposes described in our privacy policy.

Opening Times:
Mon - Sat: 9.00am - 6.00pm GMT
Sun: CLOSED

Product Information

£0.00

An Eaglerise LED Driver with a rating of 6w.
This LED Driver features a constant voltage of 12VDC.
This model can be used to replace the Huibolong HTV1205D1 more commonly found in bathroom LED mirrors.

07/09/15 – The part number of this model has now been changed to ELP006V0120LT.
19/12/16 – This model is being phased out and replaced with Huibolong HLV1206L1, which is also the replacement for the HTV1205D1 LED Driver.
26/01/17 – This model is now discontinued and replaced with HLV1206L1.

SKU: ELP06-12LS

Category: Discontinued Models

Description
Additional information

Input voltage: 220 – 240V AC
Input current: 0.065A
Frequency: 50 – 60Hz
Output current: 0.5A
Output voltage: 12VDC
NON DIMMABLE
Over temperature protection
Short circuit protection
Protection class: IP20
EMC Norm: EN55015:2006, EN61547:1995+A1:2000 EN61000-3-2:2006, EN61000-3-3:1995+A1:2001+A2:2005
Safety Norm: EN61347-2-13:2006, EN61347-1:2001, EN60598-1:2004+A1:2006
LVD Norm: Low voltage Directive 2006/95/EC

Weight	0.11 kg
Dimensions	38 × 41 × 21 mm
Condition	New
Country Of Manufacture	China
Maximum Wattage	6w
Minimum Wattage	1w
MPN	ELP06-12LS
Outputs	1
Primary	220 – 240v 50/60Hz 65mA
Secondary	Constant Voltage – DC12V 0.5a
