SaveMyLight are the only UK retailer of replacement Hytec lighting transformers.
Hytec have really upped their game over the last year. Having visited their new factory in Guangdong and seen their process for manufacture and Quality Control it is a pleasure to sell their products.
The HY-2350A is suitable for controlling high & low voltage halogen floor lamps.
This product cannot be used with LED bulbs.
The HY-2350A is the only product on the market that can replace the Kaoyi KHT234H, which has been discontinued.

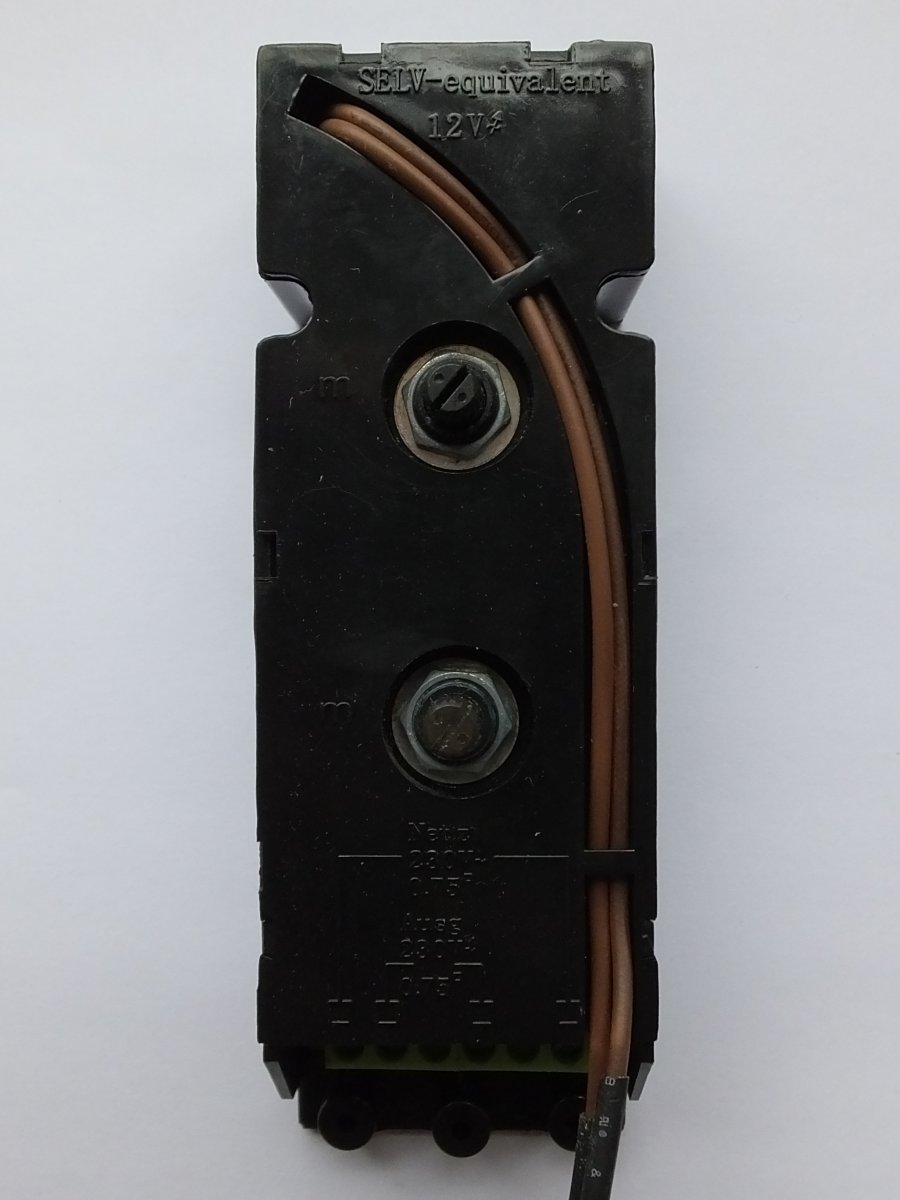

Although a slightly smaller unit the two on / off adjuster knobs are located in the same place as the KHT234H.

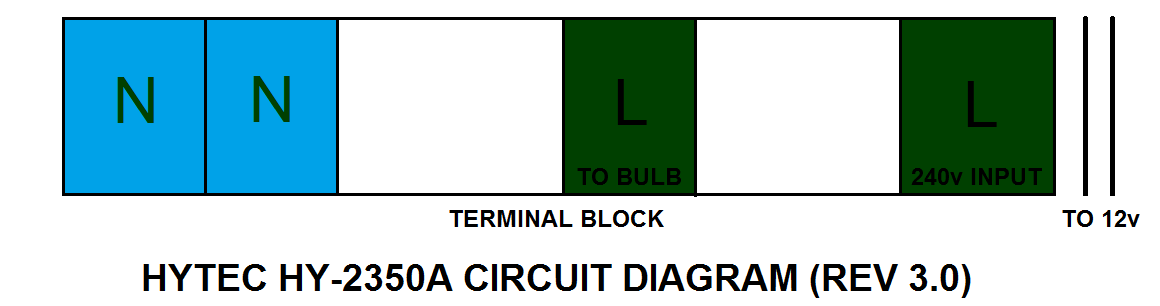

The attached circuit diagram is only for the units we sell which are a revision 3.0 model. Using this diagram to install past revisions sold by other companies will damage your unit.
Input: 220 – 240v
Secondary: 240v / 12v
Distance between the rotary switches – 34mm
Complies with the latest electrical safety standards for transformer: EN61347.
EMC compliance:- EN55015, EN61000 and EN61547.
|Dimensions||125 × 42 × 21 mm|
|Country Of Manufacture||
Via two manual rotary knobs
Output 1 – 300w Output 2 – 50w
Output 1 – 100w Output 2 – 20w
220 – 240v
300w 240v mains / 50w 12v
