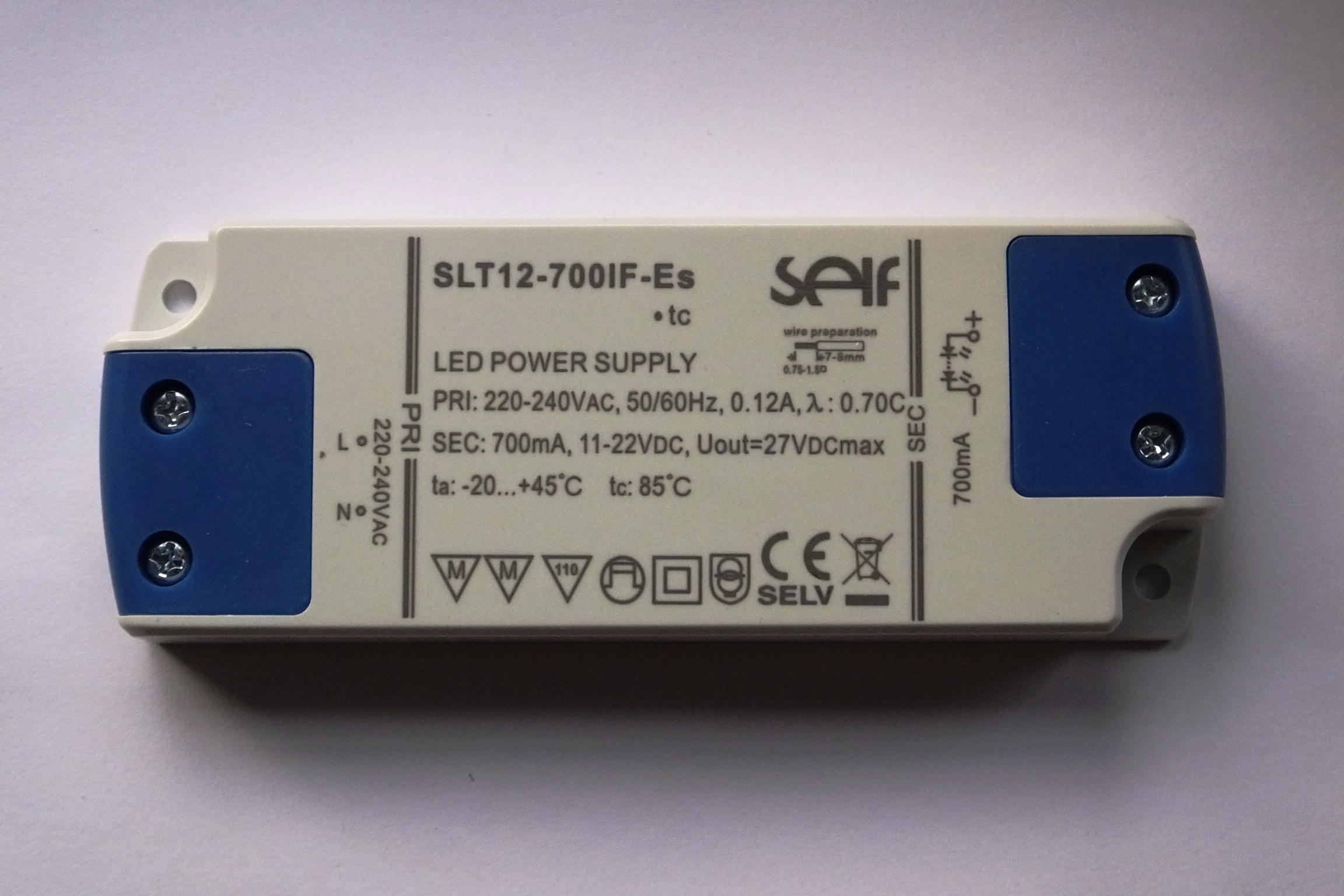

Name: SELF SLT12-700IF-ES CONSTANT CURRENT LED DRIVER
SKU: SLT12-700IF-ES
Availability: InStock

Product Information

£19.99

SELF have released their new ES range to replace the IF range.
An increased output from 12w to 15.4w, a revised working output range of 11-22v DC and a super flat case.
This is a NON dimmable LED driver.

This model CANNOT be used to replace the SLT12-700IF (Revision 1) model. It is not compatible.

Brand: Self SKU: SLT12-700IF-ES

Categories: 12v Non-Dimmable, LED Drivers

Description
Additional information

Input Voltage: 220 – 240v – 50/60Hz
Output Voltage: 27v DC max
Output Current: 700mA 11-22v DC
Secondary: 15.4w max.
Protection Degree: IP20
Case Temperature: Max 85 C
Electronic Protection Circuit and Auto Reset Overload and Over Temperature Protection

Weight	0.13 kg
Dimensions	121 × 45 × 16 mm
MPN	SLT12-700IF
Country Of Manufacture	China
Minimum Wattage	6w
Maximum Wattage	12w
Primary	220 – 240v
Secondary	17v DC max
Outputs	1
