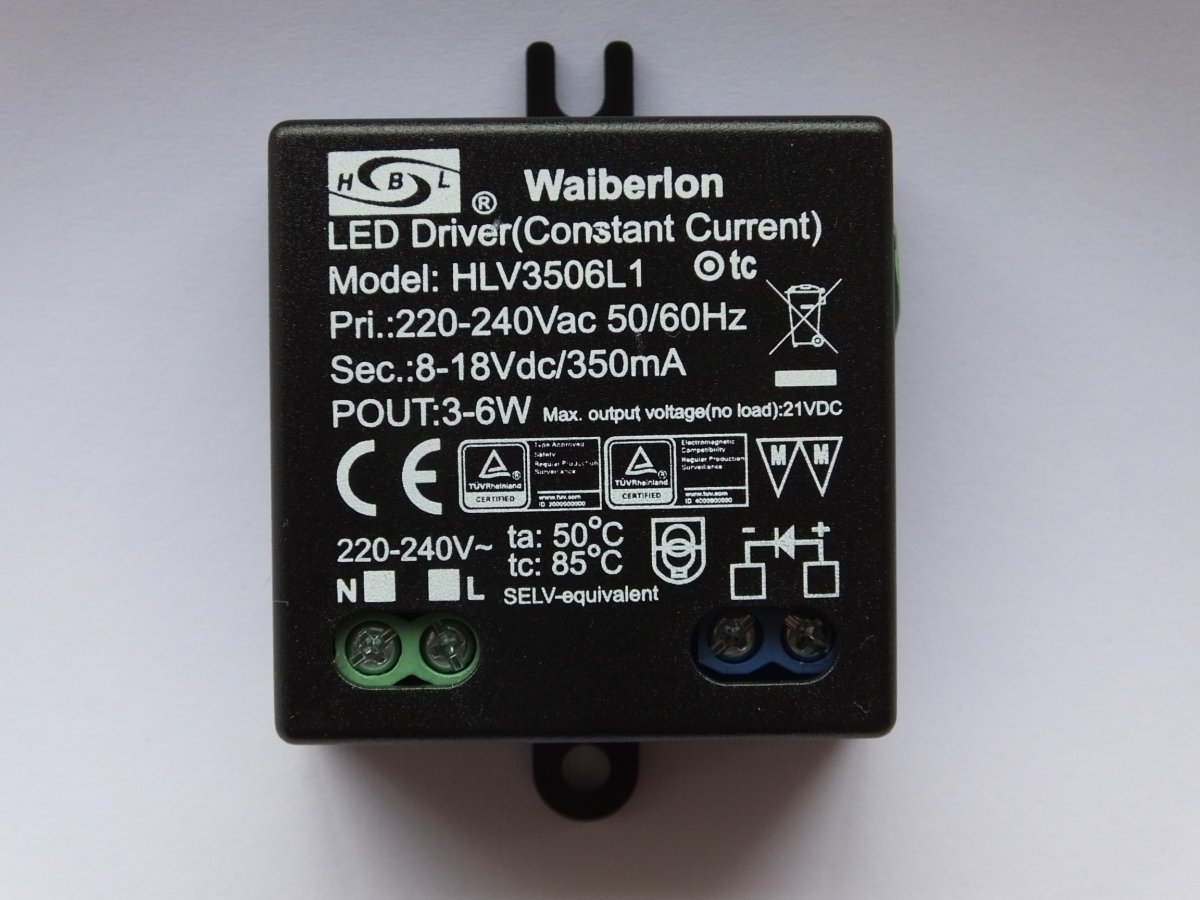

Name: WAIBERLON HLV3506L1 CONSTANT CURRENT LED DRIVER
SKU: HLV3506L1
Price: 15.99 GBP
Availability: InStock

+44 (0) 871 288 266 0

Username *

Email address *

A password will be sent to your email address.

Your personal data will be used to support your experience throughout this website, to manage access to your account, and for other purposes described in our privacy policy.

Opening Times:
Mon - Sat: 9.00am - 6.00pm GMT
Sun: CLOSED

Product Information

£15.99

This model is one of Huibolong’s newest compact LED Drivers with a rating of 6w and constant current of 350mA.
Small, compact and is ideal for light fittings or applications with limited space.

13/09/23 – This model can be used to replace the Eaglerise EBP006C0350SS LED Driver.

SKU: HLV3506L1

Categories: 12v Non-Dimmable, LED Drivers

Description
Additional information

Model: HLV3506L1
Output Current: 350mA
Load Voltage: 8 – 18Vdc
No Load Voltage: 21Vdc
Output Power: 6w
Over temperature, Short circuit and Overload protection
Safety Standards: EN61347-2-13, EN61347-1 ã€€ã€€ã€€
EMC: EN55015, EN61000-3-2, EN61000-3-3, EN61547

Weight	0.11 kg
Dimensions	43 × 43 × 20 mm
Condition	New
Country Of Manufacture	China
Maximum Wattage	6w
Minimum Wattage	3w
MPN	HLV3506L1
Outputs	1
Primary	220 – 240v 50/60Hz
Secondary	Constant Current – DC350mA 8 -18v
