Name: WAIBERLON HLV60025C1 CONSTANT CURRENT LED DRIVER
SKU: HLV60025C1
Price: 24.49 GBP
Availability: InStock

+44 (0) 871 288 266 0

Username *

Email address *

A password will be sent to your email address.

Your personal data will be used to support your experience throughout this website, to manage access to your account, and for other purposes described in our privacy policy.

Opening Times:
Mon - Sat: 9.00am - 6.00pm GMT
Sun: CLOSED

Product Information

£24.49

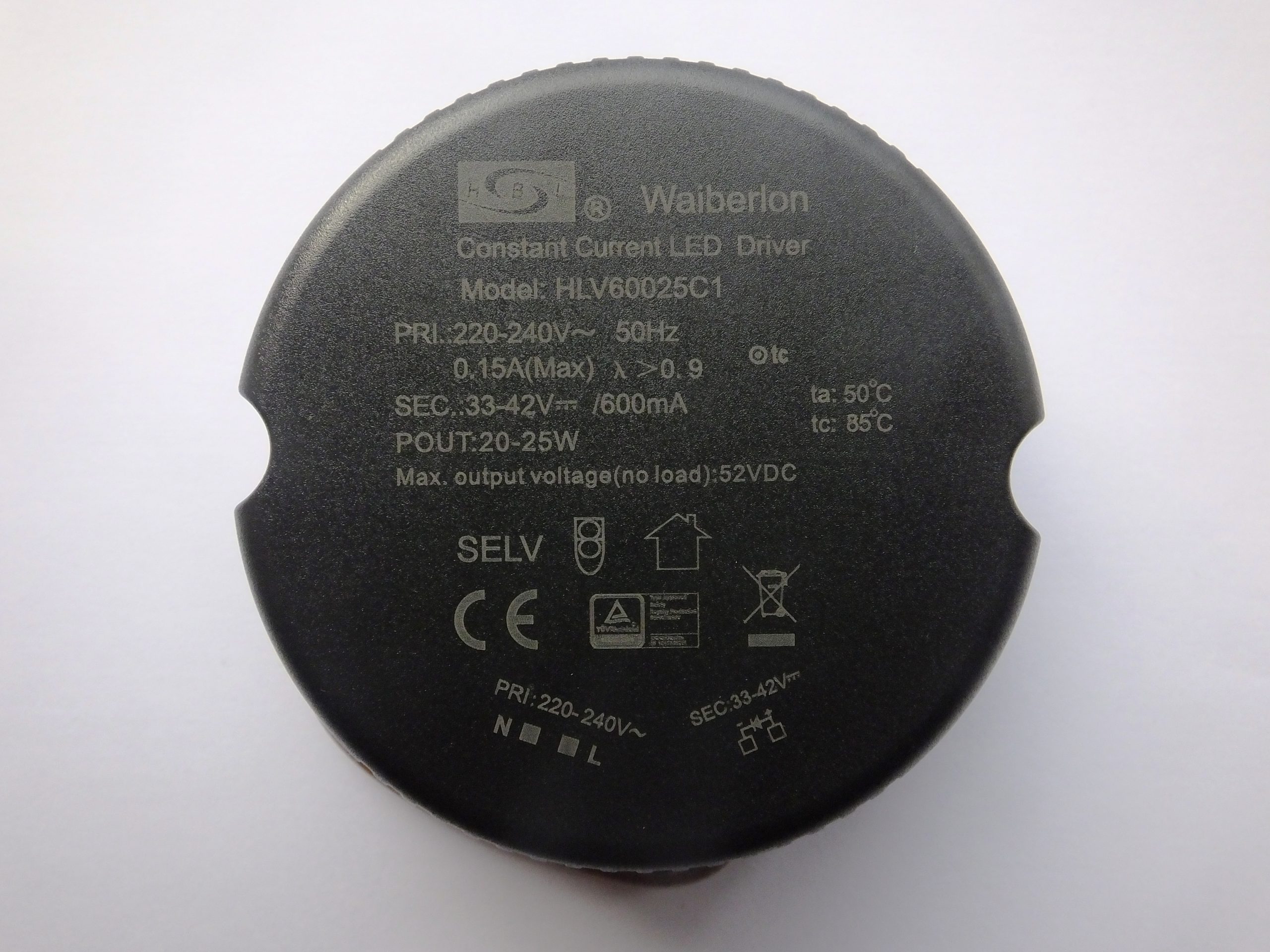

The HLV60025C1 is one of Huibolong’s latest LED Drivers.
This model has a 25w LED output.
It’s shape and size is the same of many circular halogen transformers.
We can see these being hugely popular as we advance into the LED era.
SaveMyLight is the only retailer of these LED drivers.

NOTE: The minimum load for this unit is 20w at 600mAH. If you do not have a minimum of 20w at 600mAH the unit will flash on and off repeatedly!! This is not a fault. Please do not purchase until your electrician has measured your circuit power.

Brand: Huibolong SKU: HLV60025C1

Categories: 12v Non-Dimmable, LED Drivers

Description
Additional information

Model: HLV60025C1
Primary: 220 – 240v 50Hz 0.15A
Secondary: 33 – 42v 600mA
No load voltage: 52v
Output: 20 – 25w
Dimmable: No
EN61347-2-13, EN61347-1, EN55015, EN61000-3-2, EN61000-3-3, EN61547

Weight	0.13 kg
Dimensions	87 × 31 mm
Condition	New
Country Of Manufacture	China
Maximum Wattage	25w
Minimum Wattage	20w
MPN	HLV60025C1
Outputs	1
Primary	220 – 240v
Secondary	33 – 42v
