£26.99

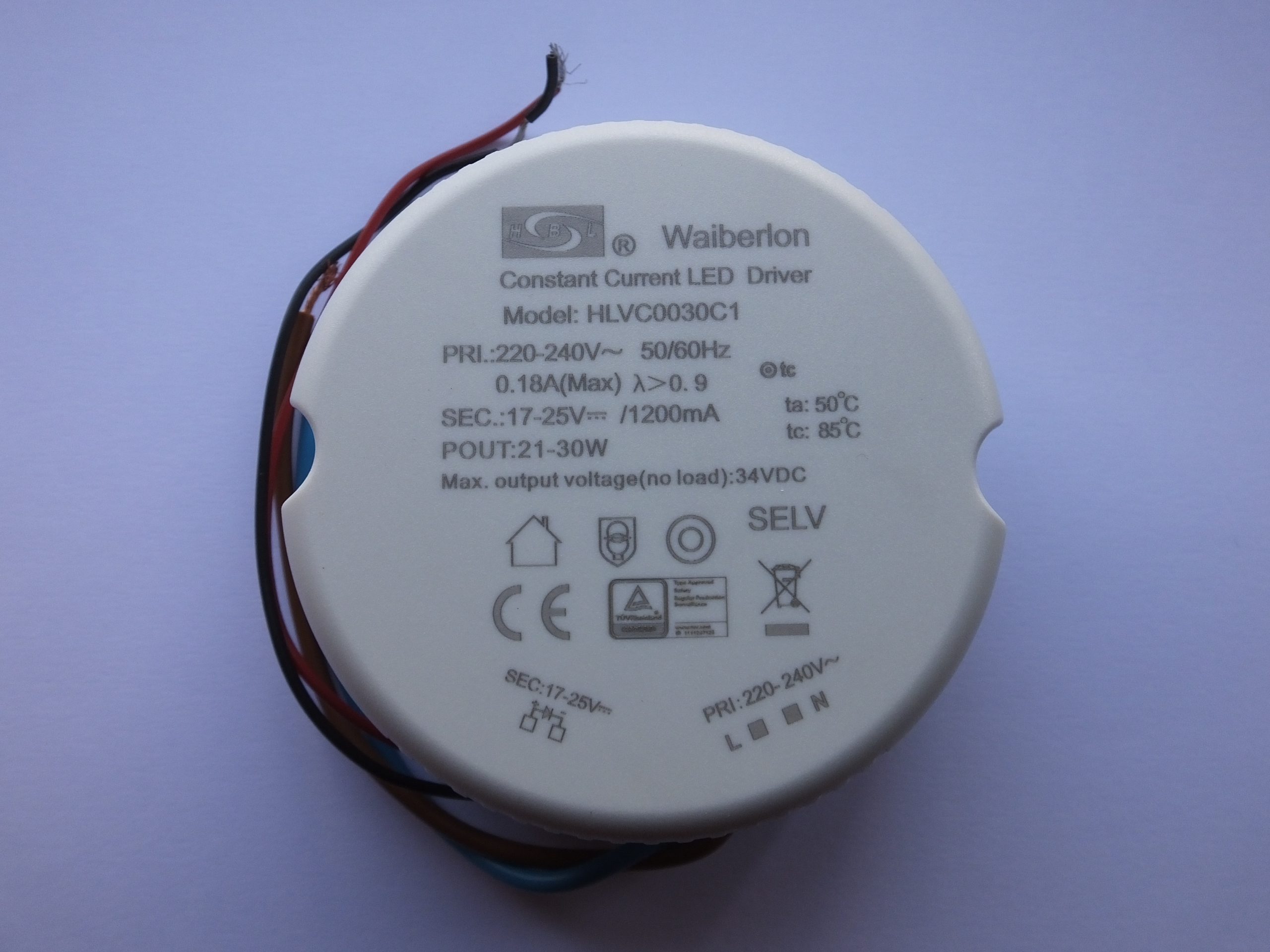

The HLVC0030C1 is one of Huibolong’s latest LED Drivers.
This model gives a 30w LED output at 1200mA.
It’s shape and size is the same of many circular halogen transformers.
We can see these being hugely popular as we advance into the LED era.
SaveMyLight is the only retailer of these LED drivers.
NOTE: The minimum load for this unit is 21w at 1200mA. If you do not have a minimum of 21w at 1200mA the unit will flash on and off repeatedly!! This is not a fault. Please do not purchase until your electrician has measured your circuit power.
30/09/26 – This model is designed to replace the Eaglerise EBP025C1200CHP and the Eaglerise EBP030C1200CHP LED Driver.
Model: HLVC0030C1
Primary: 220 – 240v 50Hz 0.18A
Secondary: 17 – 25v 1200mA
No load voltage: 34v
Output: 21 – 30w
Dimmable: No
EN61347-2-13, EN61347-1, EN55015, EN61000-3-2, EN61000-3-3, EN61547
| Weight | 0.15 kg |
|---|---|
| Dimensions | 86 × 30 mm |
| MPN | HLVC0030C1 |
| Country Of Manufacture | China |
| Minimum Wattage | 21w |
| Maximum Wattage | 30w |
| Primary | 220 – 240v |
| Secondary | 17-25v 1200mA |
| Outputs | 1 |
