£18.99

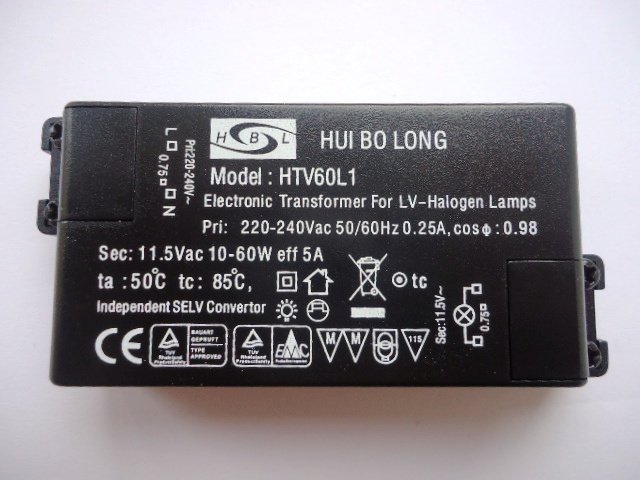

The HTV60L1 halogen transformer is from Huibolong’s L1 range that is suitable for all applications requiring a transformer with a maximum rating of 60w.
The HTV60L1 is very compact in size and is capable of being placed in the tightest of locations. This transformer has a mounting lug on the left and right hand side.
This unit is not compatible with LED bulbs.
The HTV60L1 can replace the Anchorn AET-3202RB1, Kaoyi KT-60MS and Kaoyi KA-60C
Model: HTV60L1
Input: 220 – 240v
Secondary: 11.5v
Output: 60w
Safety: EN61347-2-2:2001+A1+A2
EN61347-1:2008, EMC:EN55015:2006+A1+A2
EN61000-3-3:2008, EN61000-3-2:2006, EN61547:1995+A1
1. Overload and short-circuit protection.
2. Temperature protection.
3. EMC function, free from electromagnetic interference.
4. Plus over-voltage protection.
5. Soft start design, which extends the service life of the lamp.
6. Safe output extra low-voltage equipment (SELV).
7. Surge protection.
Not for LED bulbs
Weight | 0.120 kg |
---|---|
Dimensions | 94 × 44 × 20 mm |
MPN | HTV60L1 |
Minimum Wattage | 10w |
Maximum Wattage | 60w |
Outputs | 1 |
Dimmable | Yes |
PLEASE DO NOT ORDER THIS MODEL IF YOU HAVE A HY3360B, HY3360C OR HY3360D MODEL AS IT IS NOT COMPATIBLE WITH THEM.
